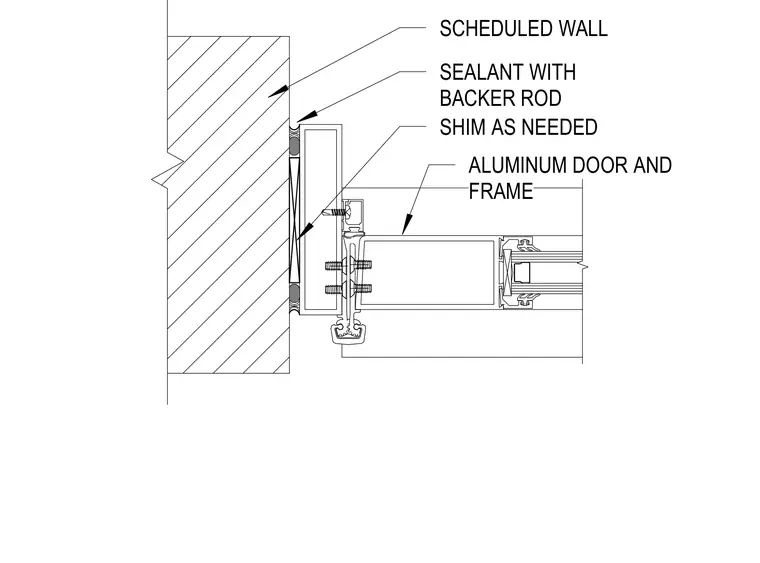

An aluminum door and frame assembly connects to a scheduled wall condition. Shims are placed as needed between the frame and the wall structure to plumb the opening. A bead of sealant backed by a backer rod seals the exterior joint between the aluminum frame and the wall finish.
