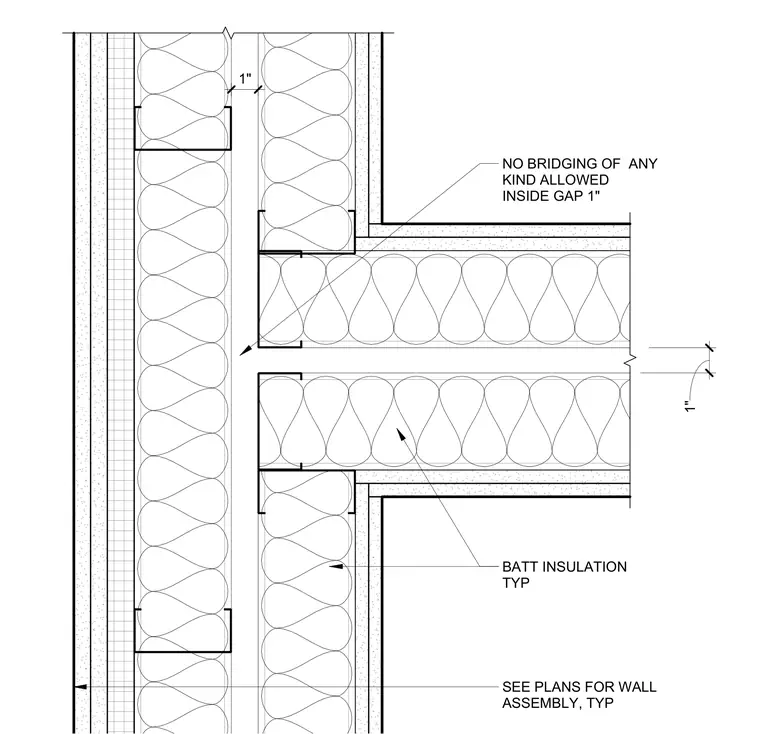

A double wood or metal stud wall assembly is separated by a one-inch air gap to prevent sound transmission. Batt insulation fills each stud cavity as specified in the architectural plans, while no bridging of any kind is allowed inside the one-inch gap. The partition layers are detailed to maintain complete acoustic and structural independence between adjacent spaces.
SEE PLANS FOR WALL ASSEMBLY, TYP BATT INSULATION TYP 1" 1" NO BRIDGING OF ANY KIND ALLOWED INSIDE GAP 1"
