Architectural · A-RFYZY

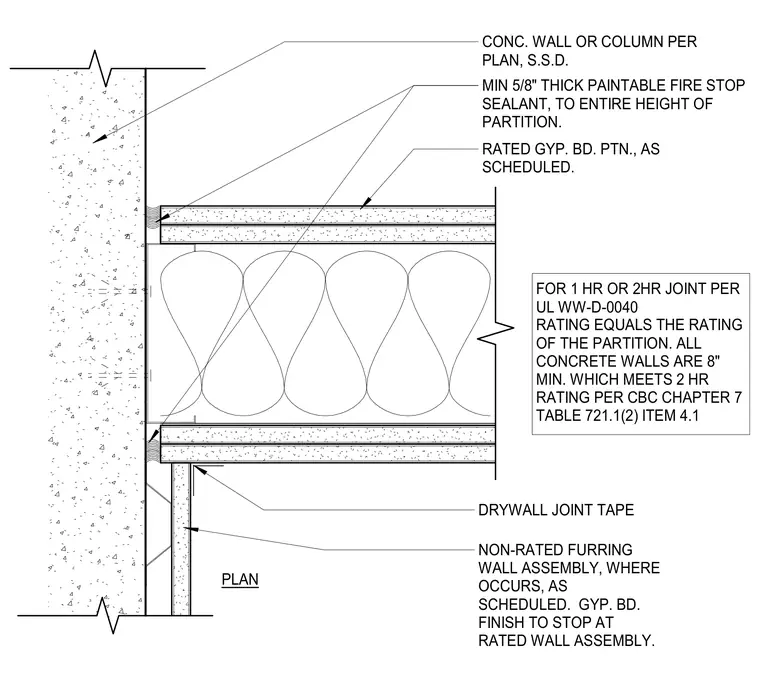

Rated Gypsum Board Partition to Concrete Wall Intersection Plan

Materials

Elements

About this detail

A rated gypsum board partition abuts a concrete wall or column per plan, sealed along the entire height of the partition with a minimum five-eighths inch thick paintable fire stop sealant. The gypsum board finish stops at the rated wall assembly, and a non-rated furring wall assembly occurs where scheduled with drywall joint tape. Joints conform to UL WW-D-0040 for one-hour or two-hour ratings matching the partition, with eight-inch minimum concrete walls satisfying CBC Chapter 7 Table 721.1(2).
