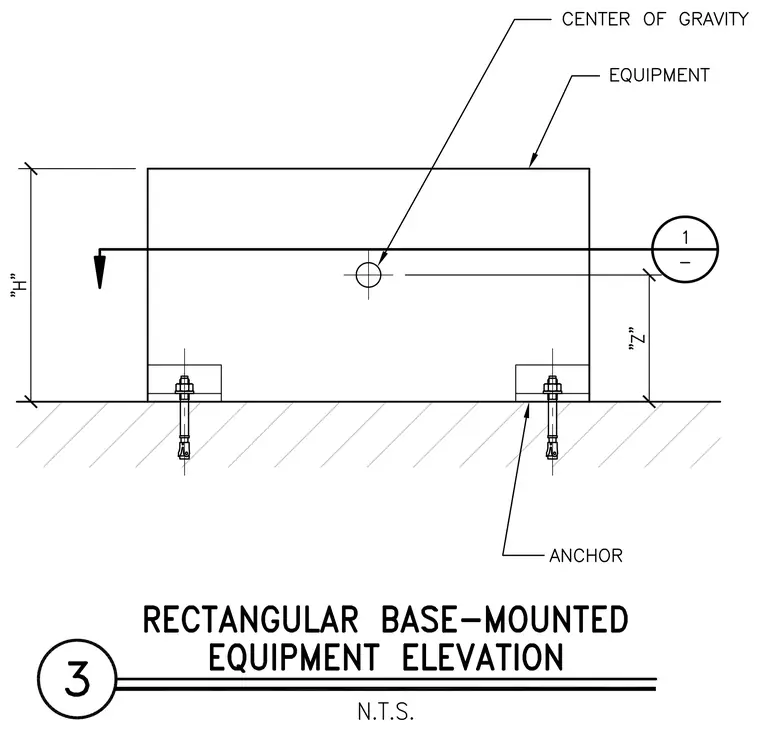

A rectangular equipment unit is anchored to a supporting base using expansion or mechanical anchors at each lower mounting foot. The assembly indicates the overall equipment height dimensioned as "H" and the center of gravity marked with a coordinate height dimensioned as "Z". A horizontal section cut line passes through the center of gravity marker and references detail bubble one. The mounting base is hatched to represent concrete or solid substrate construction.
