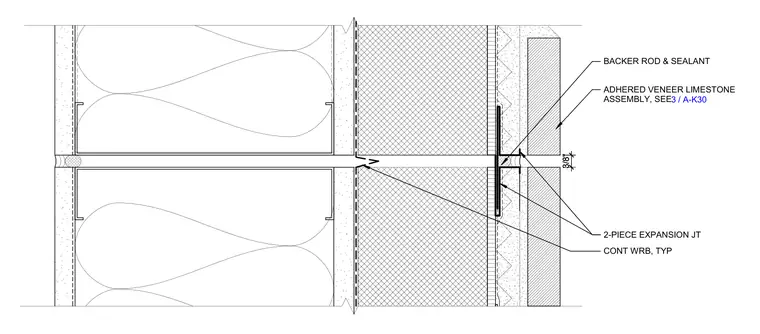

The assembly features a three-eighths-inch adhered veneer limestone panel mounted over a continuous water-resistive barrier across the exterior backup wall. A two-piece expansion joint is integrated within the joint space, sealed with a typical backer rod and sealant system to accommodate thermal movement.
3/8" ADHERED VENEER LIMESTONE ASSEMBLY, SEE 3/8" 3 / A-K30 CONT WRB, TYP BACKER ROD & SEALANT 2-PIECE EXPANSION JT
