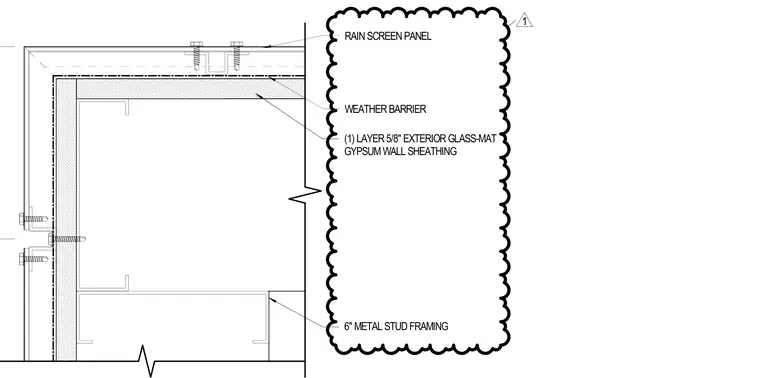

Exterior corner plan detail showing a rain screen panel system mounted to six-inch metal stud framing. The assembly includes a continuous weather barrier over one layer of five-eighths-inch exterior glass-mat gypsum wall sheathing. Panels are fastened back to the cold-formed steel framing supports with mechanical fasteners at the corner intersection.
(1) LAYER 5/8" EXTERIOR GLASS-MAT GYPSUM WALL SHEATHING RAIN SCREEN PANEL WEATHER BARRIER 6" METAL STUD FRAMING 1
