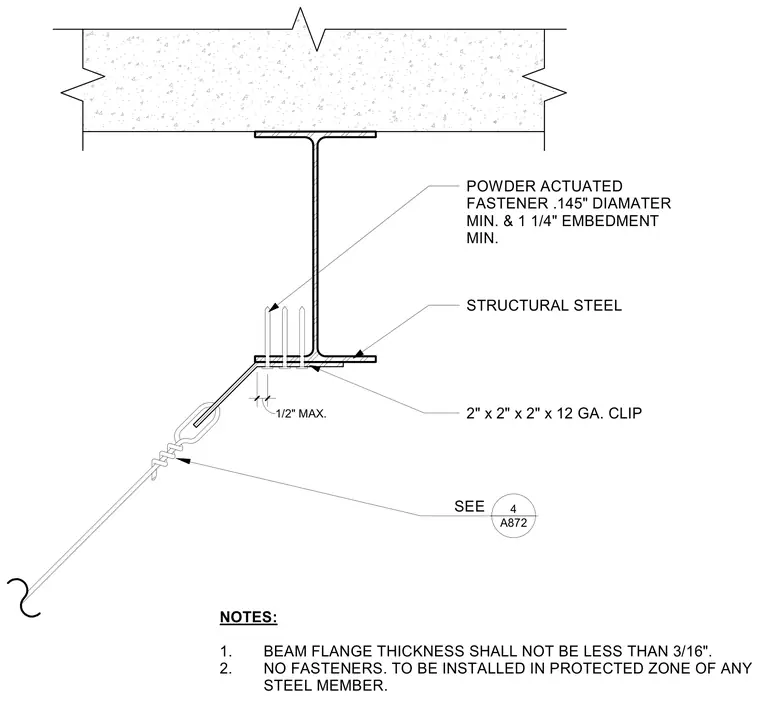

A bracing wire connects to a two-inch by two-inch by two-inch twelve-gauge steel clip secured to the underside of a structural steel beam flange. Three powder-actuated fasteners with a minimum diameter of zero point one four five inches and a minimum embedment of one and one-quarter inches anchor the clip to the beam. The supporting steel beam flange thickness must not be less than three-sixteenths of an inch. No fasteners are to be installed in the protected zone of any steel member.
SEE A872 4 STRUCTURAL STEEL 2" x 2" x 2" x 12 GA. CLIP POWDER ACTUATED FASTENER .145" DIAMATER MIN. & 1 1/4" EMBEDMENT MIN. NOTES: 1. BEAM FLANGE THICKNESS SHALL NOT BE LESS THAN 3/16". 2. NO FASTENERS. TO BE INSTALLED IN PROTECTED ZONE OF ANY STEEL MEMBER. 1/2" MAX.
