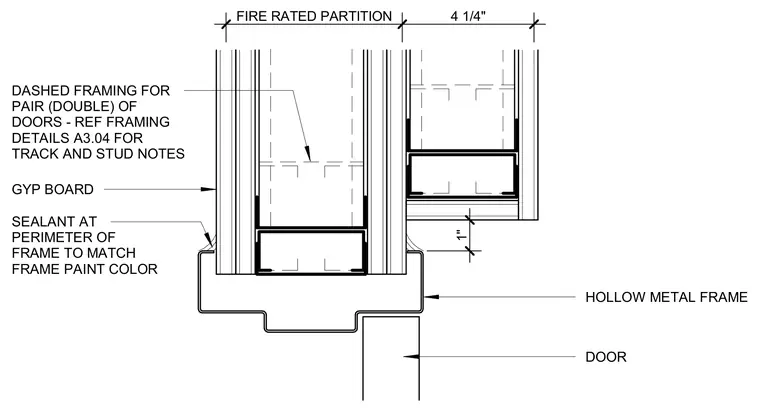

A hollow metal door frame installs at the head of a fire-rated gypsum board partition for a pair of doors with dashed framing overhead referencing track and stud details. Gypsum board finishes both faces of the partition, measuring 4-1/4 inches across the frame profile. Perimeter sealant matches the frame paint color at the joint between the frame and the gypsum board.
FIRE RATED PARTITION 4 1/4" DOOR HOLLOW METAL FRAME GYP BOARD SEALANT AT PERIMETER OF FRAME TO MATCH FRAME PAINT COLOR DASHED FRAMING FOR PAIR (DOUBLE) OF DOORS - REF FRAMING DETAILS A3.04 FOR TRACK AND STUD NOTES 1"
