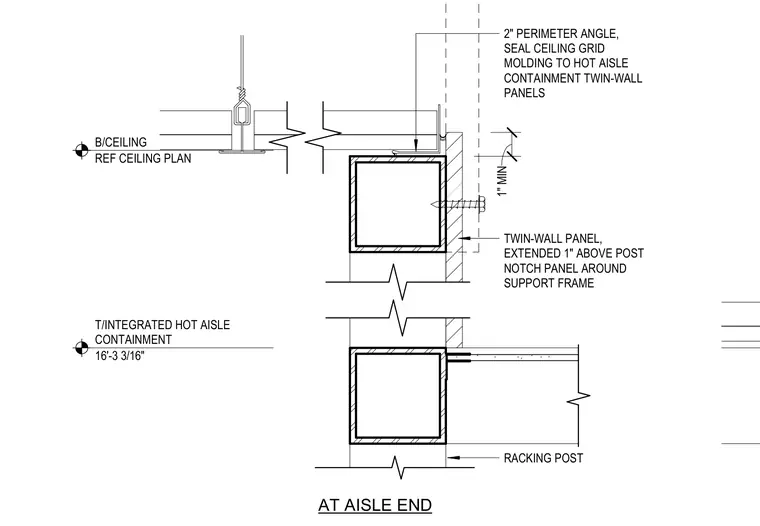

Twin-wall panels extend one inch above the racking post and are notched around the support frame. A two-inch perimeter angle seals the ceiling grid molding to the hot aisle containment twin-wall panels at the ceiling intersection.
2" PERIMETER ANGLE, SEAL CEILING GRID MOLDING TO HOT AISLE CONTAINMENT TWIN-WALL PANELS TWIN-WALL PANEL, EXTENDED 1" ABOVE POST NOTCH PANEL AROUND SUPPORT FRAME RACKING POST AT AISLE END 1" MIN REF CEILING PLAN B/CEILING 16'-3 3/16" T/INTEGRATED HOT AISLE CONTAINMENT
