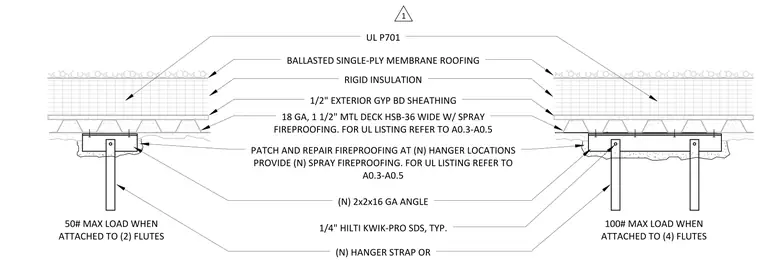

A duct hanger strap is anchored to an 18-gauge, 1-1/2-inch metal deck with a HSB-36 wide profile and spray-applied fireproofing. The assembly includes a ballasted single-ply membrane roofing system over rigid insulation and 1/2-inch exterior gypsum board sheathing. New 2x2x16-gauge angles distribute the load from the hanger strap, which is secured using 1/4-inch Hilti Kwik-Pro SDS screws typical at the connection. The configuration supports a maximum load of 50 pounds when attached to two flutes and 100 pounds when attached to four flutes. Fireproofing must be patched and repaired at all new hanger locations according to the specified UL listing.
BALLASTED SINGLE‐PLY MEMBRANE ROOFING RIGID INSULATION 1/2" EXTERIOR GYP BD SHEATHING 18 GA, 1 1/2" MTL DECK HSB‐36 WIDE W/ SPRAY FIREPROOFING. FOR UL LISTING REFER TO A0.3‐A0.5 PATCH AND REPAIR FIREPROOFING AT (N) HANGER LOCATIONS PROVIDE (N) SPRAY FIREPROOFING. FOR UL LISTING REFER TO A0.3‐A0.5 50# MAX LOAD WHEN ATTACHED TO (2) FLUTES 100# MAX LOAD WHEN ATTACHED TO (4) FLUTES (N) 2x2x16 GA ANGLE (N) HANGER STRAP OR 1/4" HILTI KWIK‐PRO SDS, TYP. UL P701 1
