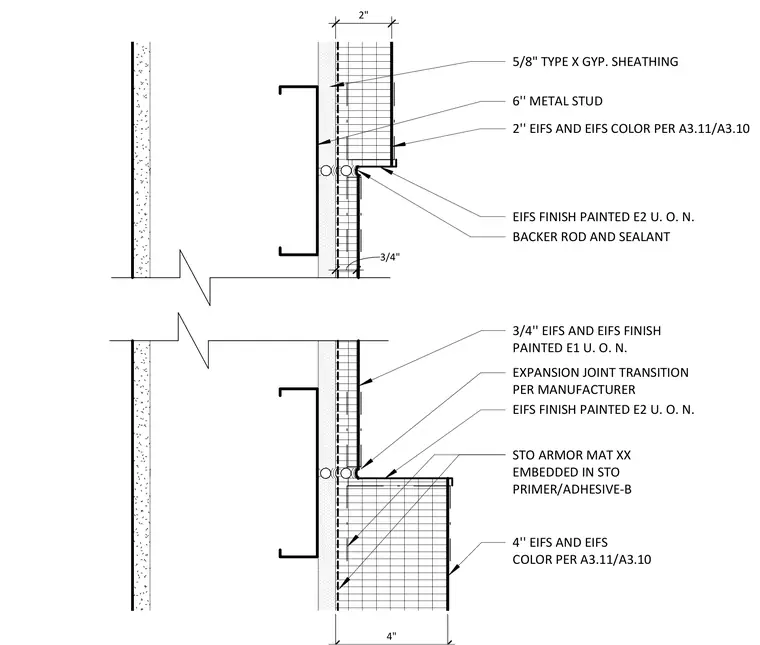

This wall section details an exterior expansion joint transition within an exterior insulation and finish system assembly. The backing wall consists of six-inch metal studs faced with five-eighths-inch Type X gypsum sheathing. The exterior insulation buildup features varying thicknesses, including two-inch and four-inch EIFS layers finished with specified paint colors and Sto Armor Mat XX reinforcing mesh embedded in Sto primer-adhesive. A proprietary expansion joint transition from the manufacturer is integrated into the joint gap and sealed with backer rod and sealant.
BACKER ROD AND SEALANT EIFS FINISH PAINTED E2 U. O. N. EIFS FINISH PAINTED E2 U. O. N. 6'' METAL STUD 5/8" TYPE X GYP. SHEATHING 4'' EIFS AND EIFS COLOR PER A3.11/A3.10 EXPANSION JOINT TRANSITION PER MANUFACTURER STO ARMOR MAT XX EMBEDDED IN STO PRIMER/ADHESIVE-B 4" 3/4" 2" 2'' EIFS AND EIFS COLOR PER A3.11/A3.10 3/4'' EIFS AND EIFS FINISH PAINTED E1 U. O. N.
