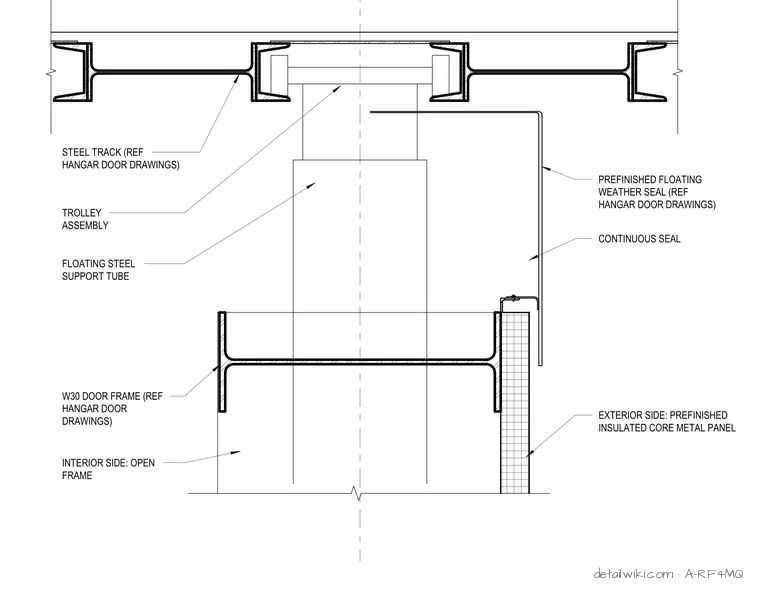

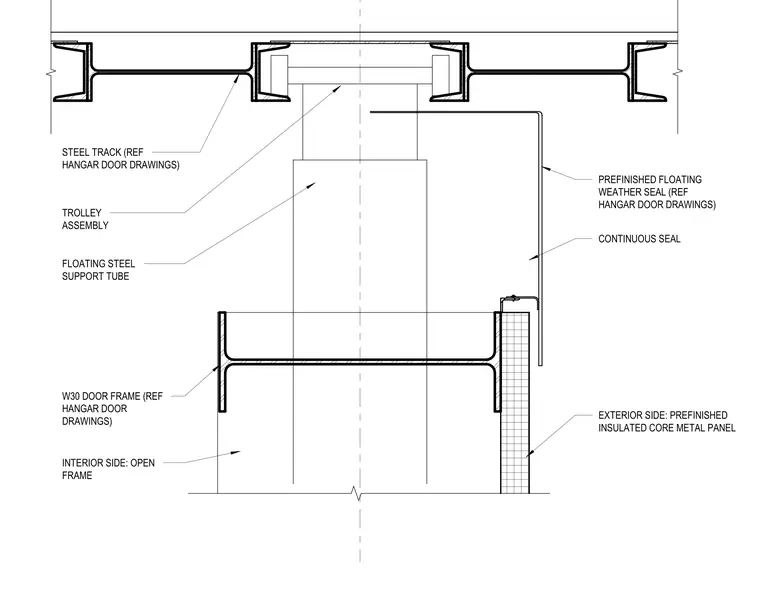

The overhead support assembly consists of a steel track referenced from the hangar door drawings carrying a trolley assembly and a floating steel support tube. The exterior side features a prefinished insulated core metal panel wall intersected by a continuous seal and a prefinished floating weather seal. The interior side incorporates a W30 door frame within an open frame configuration.
W30 DOOR FRAME (REF HANGAR DOOR DRAWINGS) PREFINISHED FLOATING WEATHER SEAL (REF HANGAR DOOR DRAWINGS) CONTINUOUS SEAL TROLLEY ASSEMBLY FLOATING STEEL SUPPORT TUBE EXTERIOR SIDE: PREFINISHED INSULATED CORE METAL PANEL STEEL TRACK (REF HANGAR DOOR DRAWINGS) INTERIOR SIDE: OPEN FRAME
