Architectural · A-RF35K

Gym Roof Drainage Trough and Scupper Section

Materials

Steel Metal (misc.)Gypsum / Drywall

Elements

Walls Roofs Ceilings Decks Waterproofing / Flashing Drainage

Connections

HSS Connection Welded Connection

About this detail

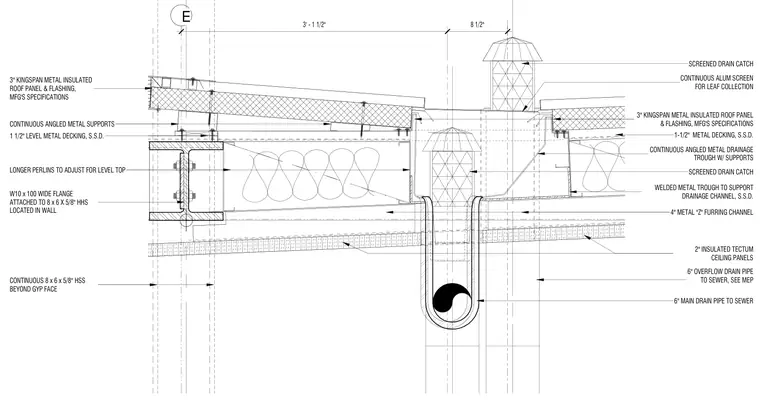

This roof drainage section details a central welded metal drainage trough integrated between sloping roof planes constructed of three-inch Kingspan metal insulated roof panels and one-and-a-half-inch metal decking. The assembly is supported by continuous angled metal supports and longer purlins adjusted for level top, bearing over a W10x100 wide flange beam attached to an 8x6x5/8-inch hollow structural section located in the wall. The drainage trough includes screened drain catches, a continuous aluminum screen for leaf collection, and connects to a six-inch main drain pipe and a six-inch overflow drain pipe routing to the sewer per mechanical engineering plans. Below the structural framing, four-inch metal Z-furring channels support two-inch insulated Tectum ceiling panels.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
