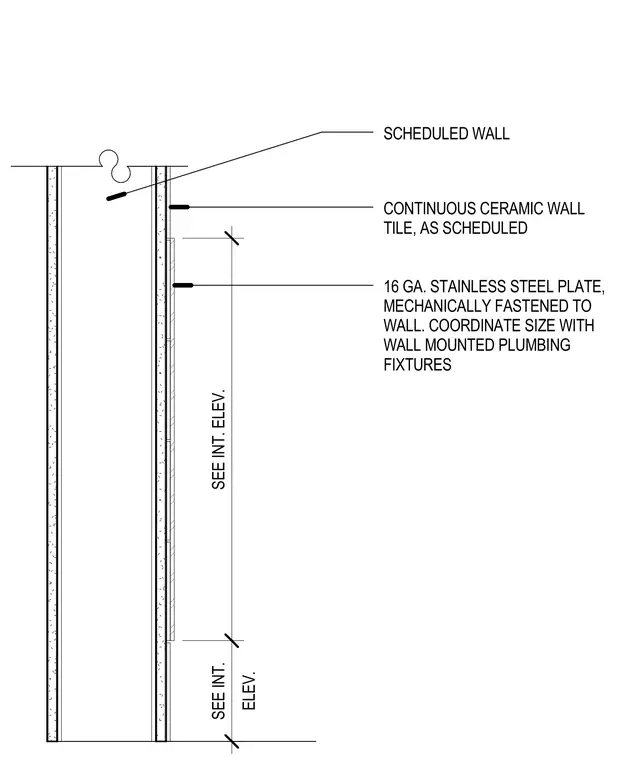

A sixteen gauge stainless steel plate is mechanically fastened to a scheduled wall finished with continuous ceramic wall tile. The size of the stainless steel plate is coordinated with wall-mounted plumbing fixtures per interior elevations.
ELEV. SEE INT. SEE INT. ELEV. CONTINUOUS CERAMIC WALL TILE, AS SCHEDULED 16 GA. STAINLESS STEEL PLATE, MECHANICALLY FASTENED TO WALL. COORDINATE SIZE WITH WALL MOUNTED PLUMBING FIXTURES SCHEDULED WALL
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
