An over-height clearance bar is fabricated from extruded aluminum with reflective vinyl to indicate height and is suspended from the overhead structure by steel cables at the garage entrance. The assembly maintains an 8'-2" minimum clear height and coordinates with van-accessible parking requirements.

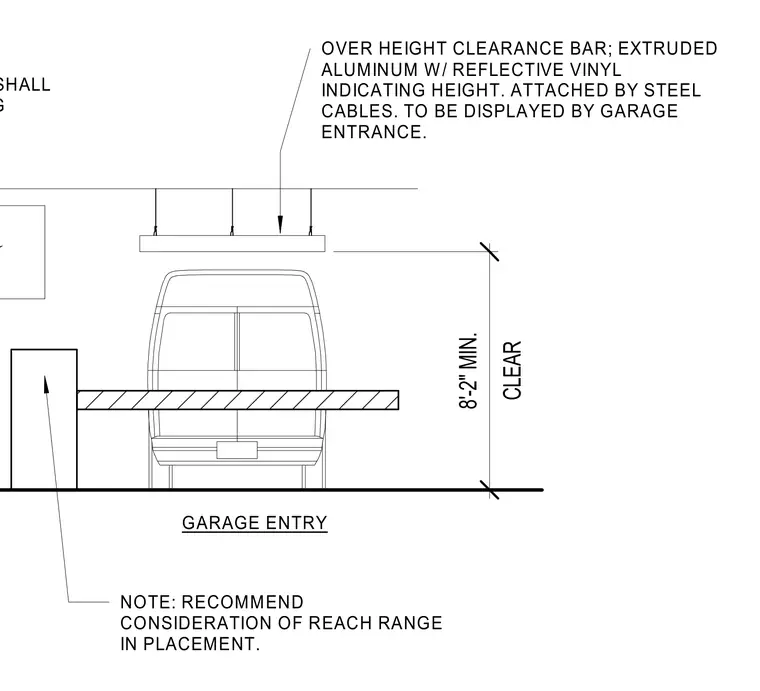

GARAGE ENTRY NOTE: RECOMMEND CONSIDERATION OF REACH RANGE IN PLACEMENT. CLEAR 8'-2" MIN. ACCESSIBLE. 1 OUT OF EVERY 8 ACCESSIBLE SPACES SHALL BE "VAN ACCESSIBLE" WITH AN 8' PASSENGER LOADING OVER HEIGHT CLEARANCE BAR; EXTRUDED ALUMINUM W/ REFLECTIVE VINYL INDICATING HEIGHT. ATTACHED BY STEEL CABLES. TO BE DISPLAYED BY GARAGE ENTRANCE.
