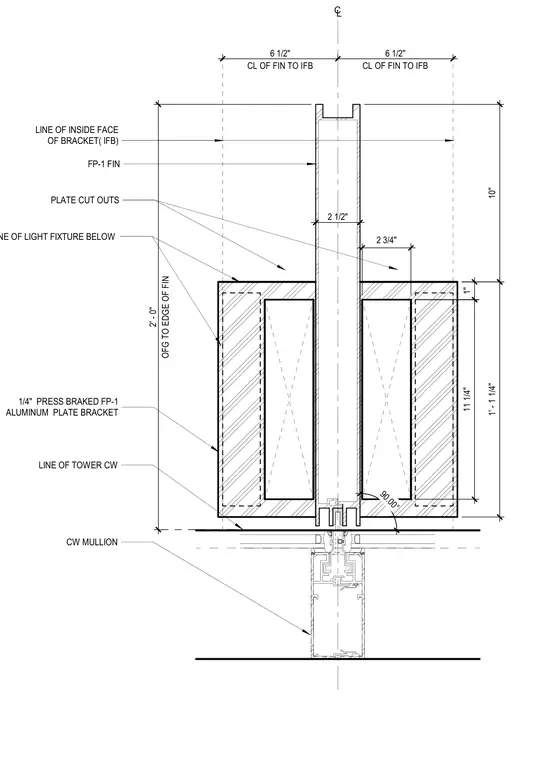

This plan detail shows a crown light valance assembly featuring a quarter-inch press-braked FP-1 aluminum plate bracket and FP-1 fin mounted to a tower curtain wall mullion. The aluminum plate bracket includes specific cutouts and spans two feet to the edge of the fin, aligning with the light fixture positioned below. Dimensions detail six and a half inches from the centerline of the fin to the inside face of the bracket, with an overall width configuration relative to the central axis.
9 0 . 0 0 ° CL C L O F F I N T O I F B 6 1 / 2 " C L O F F I N T O I F B 6 1 / 2 " 2 1 / 2 " O F G T O E D G E O F F I N 2 ' - 0 " LINE OF TOWER CW 1/4" PRESS BRAKED FP-1 ALUMINUM PLATE BRACKET LINE OF LIGHT FIXTURE BELOW FP-1 FIN PLATE CUT OUTS LINE OF INSIDE FACE OF BRACKET( IFB) CW MULLION 1 0 " 2 3 / 4 " 1 1 1 / 4 " 1 ' - 1 1 / 4 " 1 "
