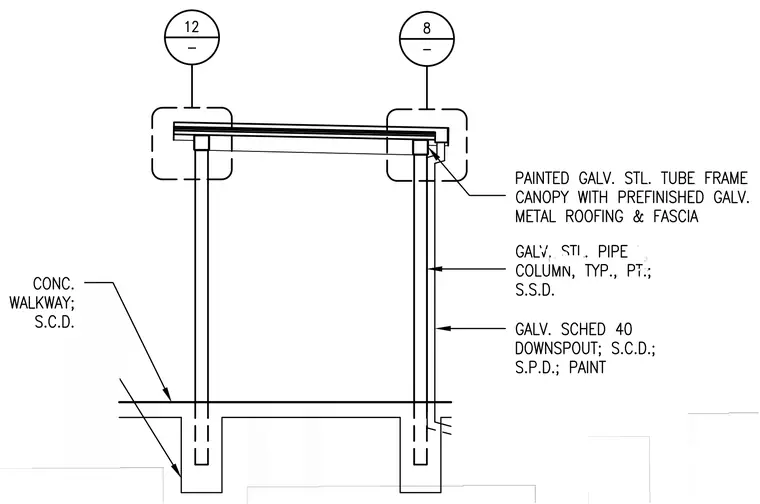

A painted galvanized steel tube frame canopy with prefinished galvanized metal roofing and fascia is supported by galvanized steel pipe columns. The columns bear down to concrete footings below a concrete walkway. A galvanized schedule forty downspout is integrated alongside the column framing.
