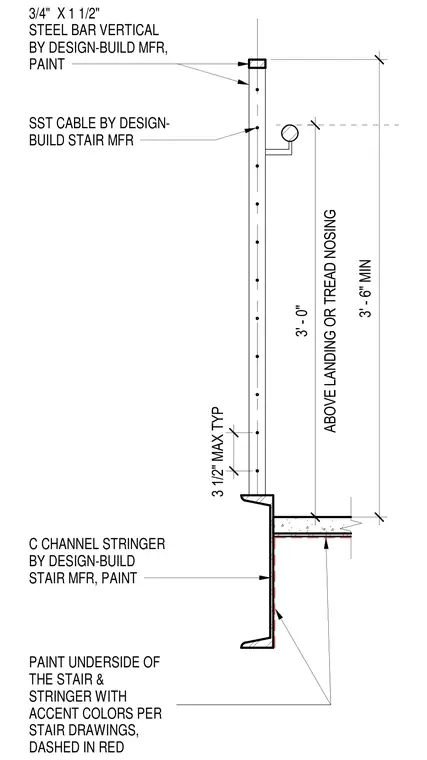

This stair railing assembly features a vertical three-quarter-inch by one-and-a-half-inch steel bar and stainless steel cables provided by a design-build stair manufacturer. The vertical elements attach to a C-channel stair stringer. The railing height is dimensioned at three feet minimum above the landing or tread nosing, with a three-foot-six-inch minimum overall height and three-and-a-half-inch maximum typical cable spacing. The underside of the stair and stringer is painted with accent colors per the stair drawings.
ABOVE LANDING OR TREAD NOSING 3' - 0" 3' - 6" MIN 3/4" X 1 1/2" STEEL BAR VERTICAL BY DESIGN-BUILD MFR, PAINT SST CABLE BY DESIGN- BUILD STAIR MFR 3 1/2" MAX TYP C CHANNEL STRINGER BY DESIGN-BUILD STAIR MFR, PAINT PAINT UNDERSIDE OF THE STAIR & STRINGER WITH ACCENT COLORS PER STAIR DRAWINGS, DASHED IN RED
