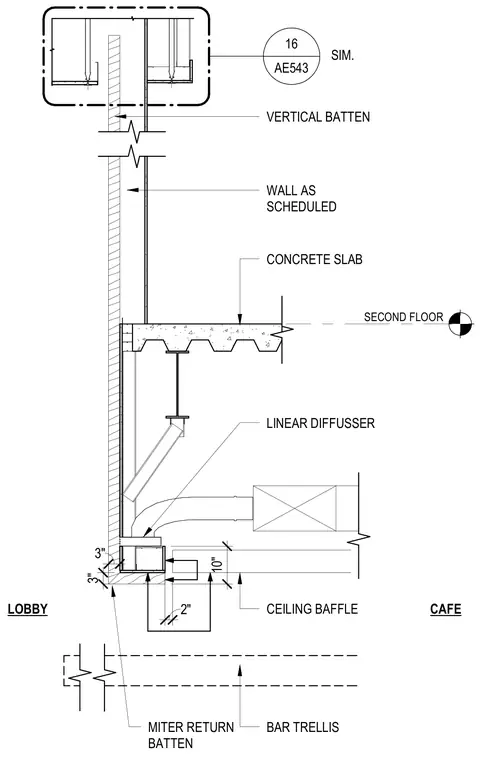

This wall section details the vertical wood batten wall finish intersecting the second-floor concrete slab between a lobby and a cafe. The assembly features a wall as scheduled, a vertical wood batten with a mitered return batten, and a concrete slab at the second floor level. Mechanical provisions include a linear diffuser positioned near the ceiling baffle and bar trellis.
__________ AE543 16 SECOND FLOOR WALL AS SCHEDULED CONCRETE SLAB LINEAR DIFFUSSER VERTICAL BATTEN LOBBY CAFE BAR TRELLIS SIM. 2" 10" 3" 3" CEILING BAFFLE MITER RETURN BATTEN
