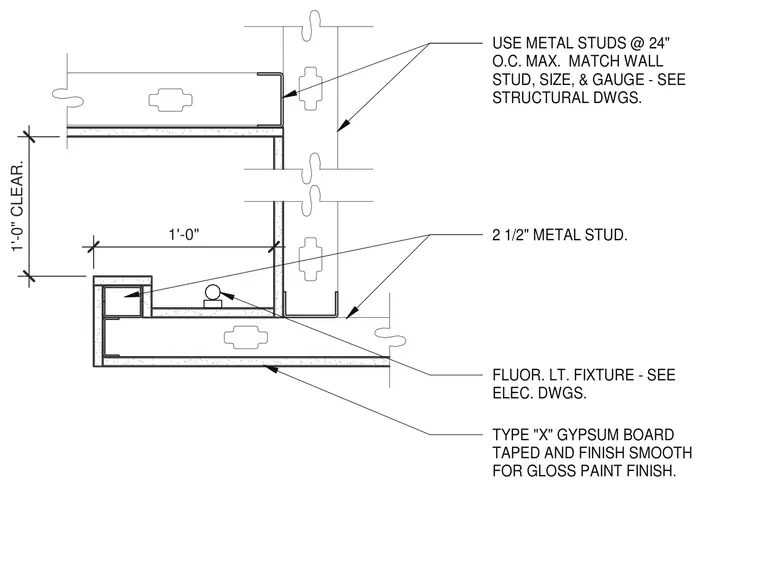

This interior architectural detail constructs a cove-lit ceiling soffit using cold-formed metal framing and gypsum board. The vertical wall utilizes metal studs spaced at twenty-four inches on center maximum, with size and gauge matched to the wall framing per structural drawings. A smaller two-and-a-half-inch metal stud frames the cove lip and drop. The entire assembly is finished with Type X gypsum board, taped and finished smooth for a gloss paint finish. A fluorescent light fixture is concealed within the one-foot clearance of the cove pocket.
TYPE "X" GYPSUM BOARD TAPED AND FINISH SMOOTH FOR GLOSS PAINT FINISH. USE METAL STUDS @ 24" O.C. MAX. MATCH WALL STUD, SIZE, & GAUGE - SEE STRUCTURAL DWGS. 2 1/2" METAL STUD. FLUOR. LT. FIXTURE - SEE ELEC. DWGS. 1'-0" CLEAR. 1'-0"
