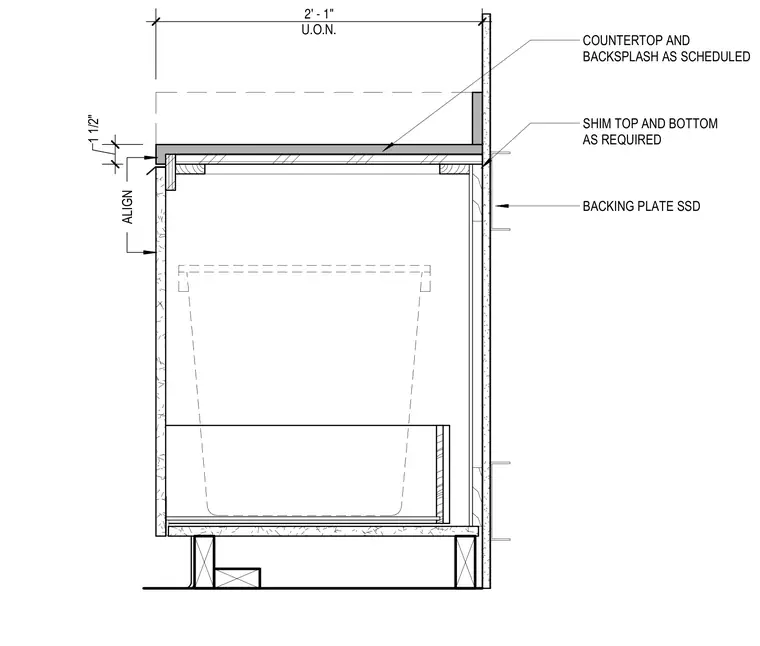

This base cabinet millwork assembly features an internal pull-out tray and is anchored to the wall using a backing plate secured with shims at the top and bottom as required. A countertop and backsplash are installed on top of the cabinet as scheduled. Dimensions indicate a 2'-1" overall depth, with typical alignment maintained unless otherwise noted.
ALIGN U.O.N. 2' - 1" COUNTERTOP AND BACKSPLASH AS SCHEDULED BACKING PLATE SSD SHIM TOP AND BOTTOM AS REQUIRED 1 1/2"
