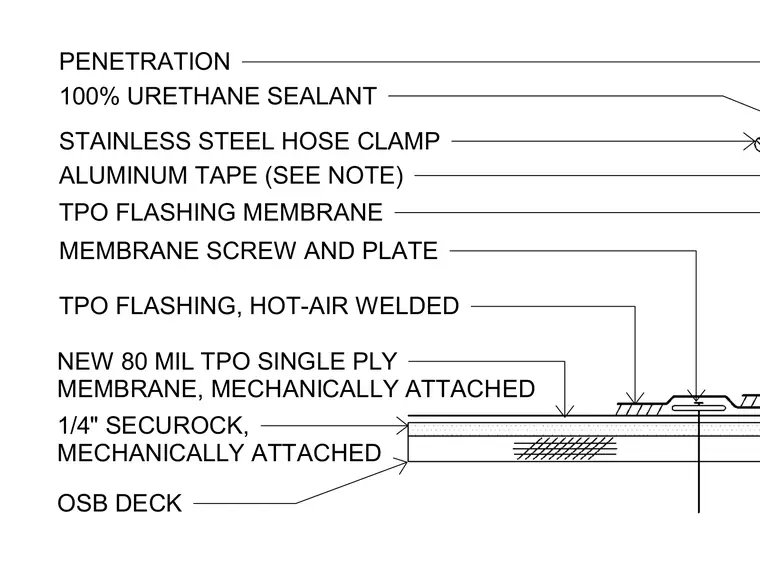

An oriented strand board roof deck supports a mechanically attached quarter-inch Securock substrate board. A new eighty-mil thermoplastic polyolefin single-ply membrane is mechanically fastened to the deck using membrane screws and plates. The penetration flashing is wrapped with thermoplastic polyolefin flashing membrane, secured with an aluminum tape and a stainless steel hose clamp, and sealed with a hundred percent urethane sealant at the top. Hot-air welds join the flashing membrane to the field sheet.
1/4" SECUROCK, MECHANICALLY ATTACHED NEW 80 MIL TPO SINGLE PLY MEMBRANE, MECHANICALLY ATTACHED TPO FLASHING, HOT-AIR WELDED MEMBRANE SCREW AND PLATE TPO FLASHING MEMBRANE ALUMINUM TAPE (SEE NOTE) STAINLESS STEEL HOSE CLAMP 100% URETHANE SEALANT PENETRATION OSB DECK
