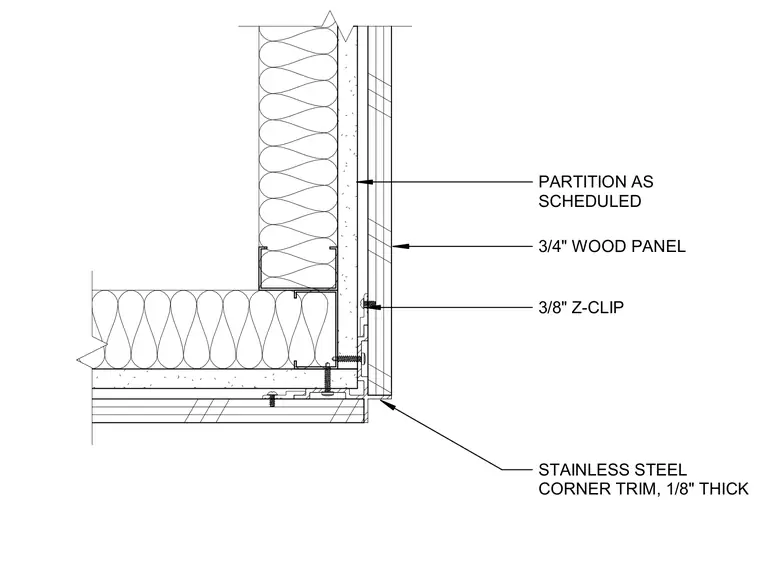

An interior wood panel wall corner featuring a partition as scheduled with metal studs and gypsum board backing. Three-quarter inch thick wood panels attach to the framing using three-eighths inch Z-clips and mechanical fasteners. A one-eighth inch thick stainless steel corner trim protects the outside corner and finishes the panel edges.
PARTITION AS SCHEDULED STAINLESS STEEL CORNER TRIM, 1/8" THICK 3/4" WOOD PANEL 3/8" Z-CLIP
