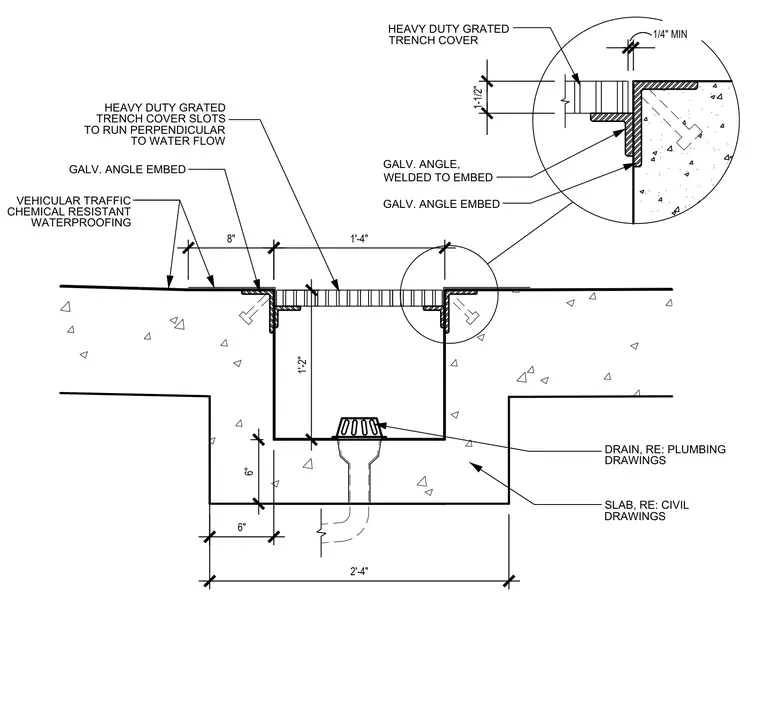

A heavy-duty grated trench cover spans a recessed concrete trench lined with one-and-a-half-inch galvanized steel angle embeds welded to embed plates. The trench perimeter is finished with a quarter-inch minimum chemical-resistant waterproofing membrane suitable for vehicular traffic. The grated cover features slots oriented perpendicular to the direction of water flow. A floor drain connects to the trench bottom per plumbing drawings, housed within a thickened concrete slab profile.
1/4" MIN 1-1/2" GALV. ANGLE EMBED 6" 1'-2" GALV. ANGLE EMBED CHEMICAL RESISTANT 8" 1'-4" 2'-4" 6" HEAVY DUTY GRATED TRENCH COVER SLOTS TO RUN PERPENDICULAR TO WATER FLOW VEHICULAR TRAFFIC WATERPROOFING GALV. ANGLE, WELDED TO EMBED DRAIN, RE: PLUMBING DRAWINGS SLAB, RE: CIVIL DRAWINGS HEAVY DUTY GRATED TRENCH COVER
