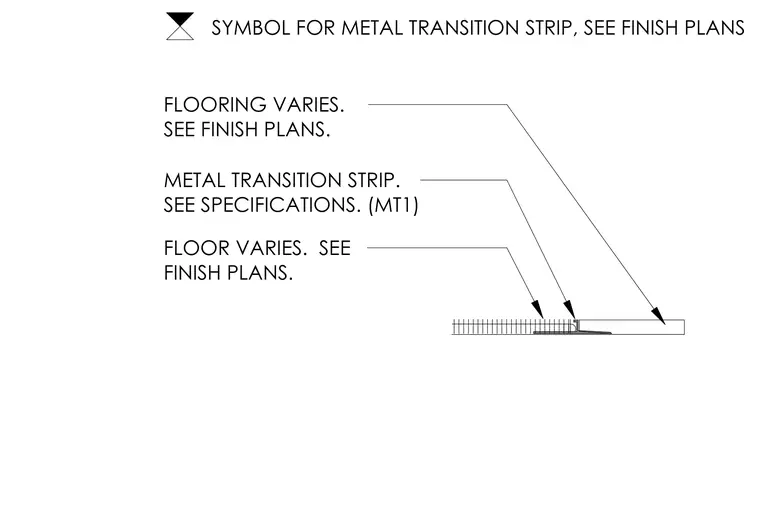

A metal transition strip connects varying flooring finishes across a floor joint. The transition profile MT1 is detailed per specifications, accommodating different floor material heights and types as indicated on finish plans.
METAL TRANSITION STRIP. SEE SPECIFICATIONS. (MT1) FLOORING VARIES. SEE FINISH PLANS. FLOOR VARIES. SEE FINISH PLANS. SYMBOL FOR METAL TRANSITION STRIP, SEE FINISH PLANS
