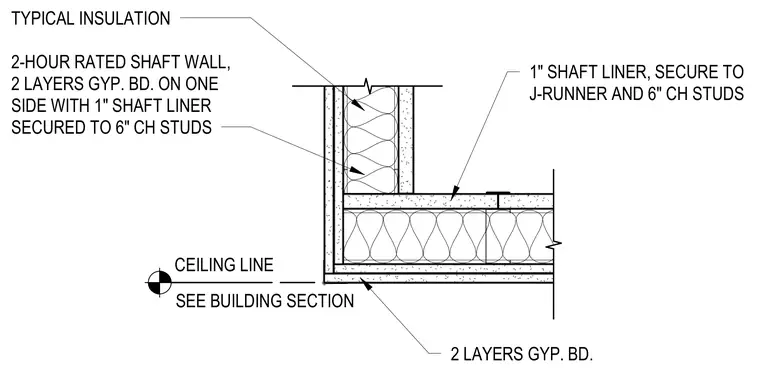

The base condition of a two-hour rated shaft wall assembly is constructed with six-inch CH studs and a one-inch shaft liner secured to J-runners. The shaft wall features two layers of gypsum board on one side with typical insulation installed within the cavity. The ceiling line is coordinated per the building section and incorporates two layers of gypsum board below with a one-inch shaft liner above.
CEILING LINE SEE BUILDING SECTION 2 LAYERS GYP. BD. 1" SHAFT LINER, SECURE TO J-RUNNER AND 6" CH STUDS 2-HOUR RATED SHAFT WALL, 2 LAYERS GYP. BD. ON ONE SIDE WITH 1" SHAFT LINER SECURED TO 6" CH STUDS TYPICAL INSULATION
