Architectural · A-RCNYQ

Typical Sill Detail at Bus Gate Storefront

Materials

Concrete Glass / Glazing Aluminum Metal (misc.)

Elements

Storefronts Facades / Cladding Floors / Slabs Decks Waterproofing / Flashing Site / Paving Anchors / Embeds Reinforcing Roof / Floor Openings

Connections

Rebar Splice / Development

About this detail

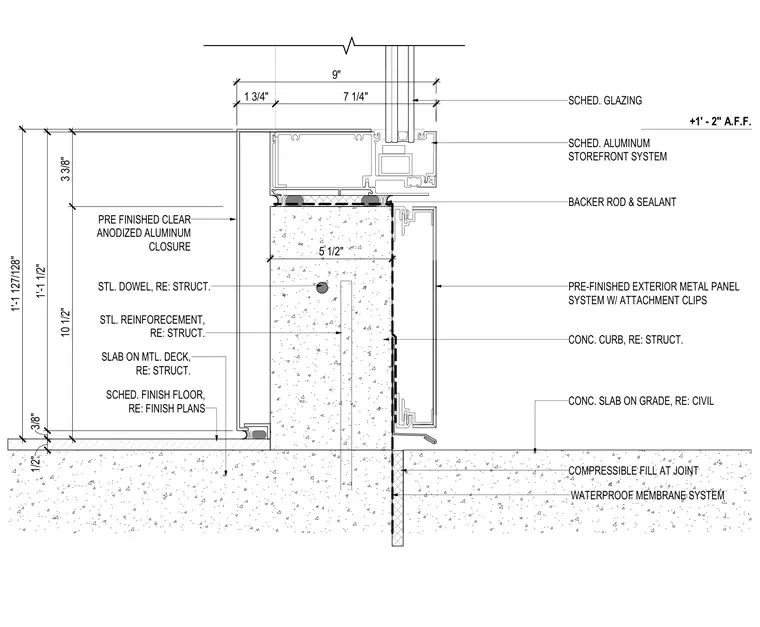

An aluminum storefront system sits atop a reinforced concrete curb and slab on grade, transitioning to a finish floor elevation of +1'-2" A.F.F. The storefront base uses scheduled glazing and an aluminum frame sealed with a backer rod and sealant joint. A pre-finished clear anodized aluminum closure covers the exterior face, while the curb exterior features a pre-finished exterior metal panel system with attachment clips. Steel dowels and reinforcement tie the concrete curb to the structural slab, which is isolated from exterior slabs by a compressible fill joint and protected with a waterproof membrane system.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
