Architectural · A-RCCDT

Overhead Open Shelving

Elements

About this detail

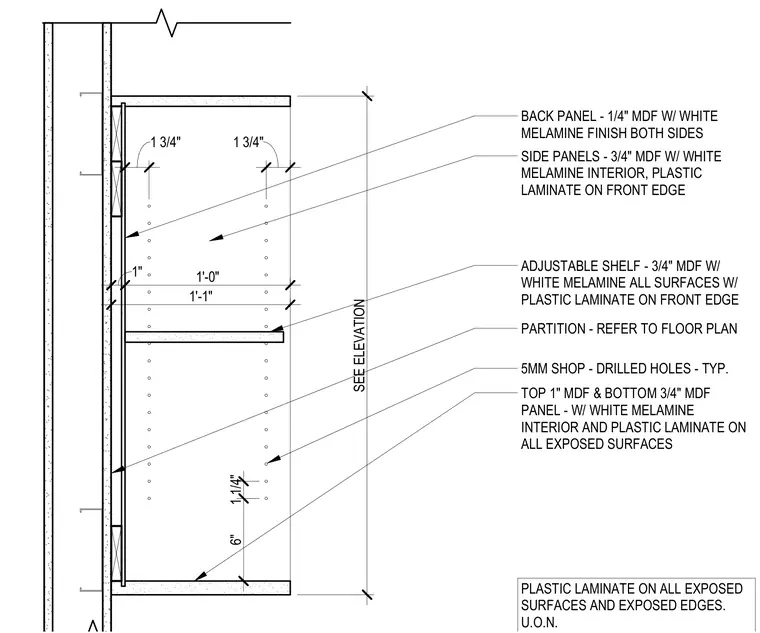

An overhead open shelving unit is constructed from medium density fiberboard panels featuring a white melamine interior finish and plastic laminate applied to exposed edges. The top panel is one inch thick, while the bottom panel, side panels, and adjustable shelves are three-quarters of an inch thick, all supported by a quarter-inch back panel finished on both sides with white melamine. Side panels feature typical five-millimeter shop-drilled holes spaced for adjustable shelving. The shelving unit anchors to a partition wall per floor plan specifications, with plastic laminate specified on all exposed surfaces and edges unless noted otherwise.
