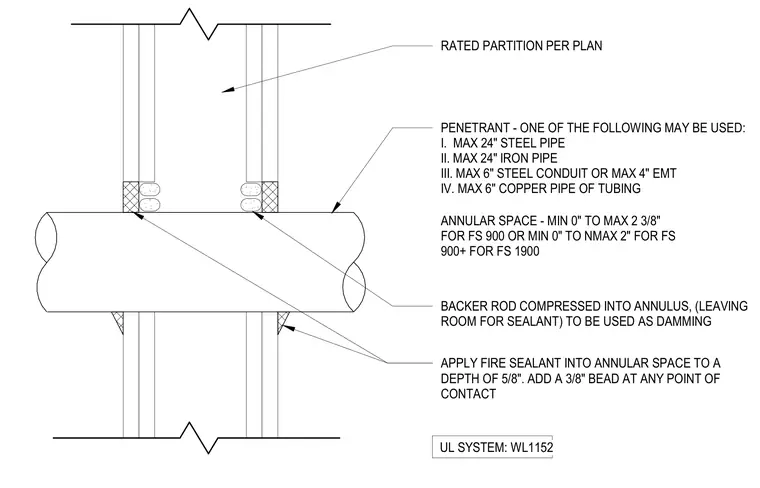

A metal stud framed rated partition is penetrated by a pipe, iron pipe, steel conduit, electrical metallic tubing, or copper tubing sized per plan. An annular space ranging from zero to two and three-eighths inches is packed with a compressed backer rod acting as a damming material. Fire sealant is applied into the annular space to a depth of five-eighths of an inch with a three-eighths inch bead at the point of contact in accordance with Underwriters Laboratories system WL1152.
RATED PARTITION PER PLAN PENETRANT - ONE OF THE FOLLOWING MAY BE USED: I. MAX 24" STEEL PIPE II. MAX 24" IRON PIPE III. MAX 6" STEEL CONDUIT OR MAX 4" EMT IV. MAX 6" COPPER PIPE OF TUBING ANNULAR SPACE - MIN 0" TO MAX 2 3/8" FOR FS 900 OR MIN 0" TO NMAX 2" FOR FS 900+ FOR FS 1900 BACKER ROD COMPRESSED INTO ANNULUS, (LEAVING ROOM FOR SEALANT) TO BE USED AS DAMMING APPLY FIRE SEALANT INTO ANNULAR SPACE TO A DEPTH OF 5/8". ADD A 3/8" BEAD AT ANY POINT OF CONTACT UL SYSTEM: WL1152
