An integrated hot aisle containment suspended ceiling interfaces with a hollow structural steel racking post and support. A two-inch perimeter angle provides the ceiling edge support, sealed with a bead of joint sealant against the racking framework. The ceiling grid is suspended independently above while framing into the containment assembly at an elevation of sixteen feet, three and three-sixteenths inches.

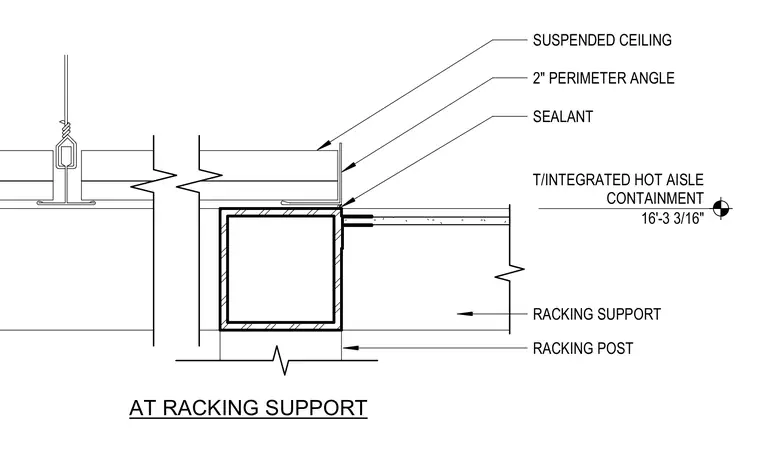

2" PERIMETER ANGLE SEALANT AT RACKING SUPPORT 16'-3 3/16" T/INTEGRATED HOT AISLE CONTAINMENT SUSPENDED CEILING RACKING SUPPORT RACKING POST
