Guardrail And Wood Soffit At Lobby

Materials

Concrete Steel Cold-formed Steel Timber / Wood Glass / Glazing Aluminum Metal (misc.)Gypsum / Drywall

Elements

Beams Walls Windows Facades / Cladding Railings / Guards Ceilings Floors / Slabs Decks Bracing Entrances Connections / Plates

About this detail

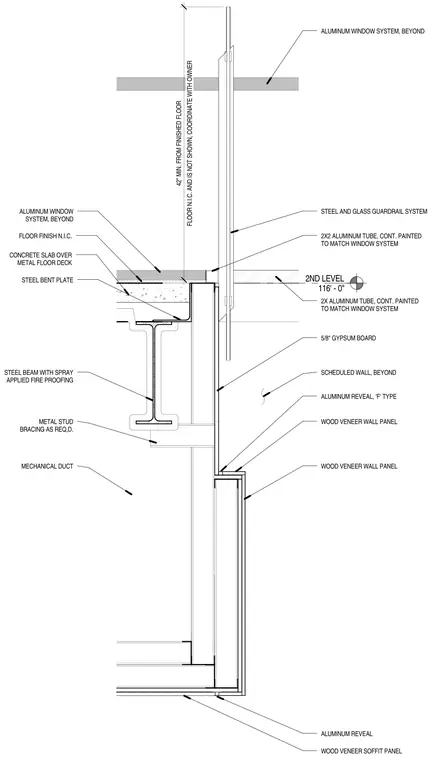

The assembly occurs at the second level floor slab, consisting of a concrete slab over a metal floor deck supported by a steel beam with spray-applied fireproofing. A steel bent plate edges the slab. A steel and glass guardrail system extends upward from the slab, anchored by continuous two-by-two and two-by aluminum tubes painted to match the window system. Below the slab, a suspended ceiling assembly incorporates five-eighths inch gypsum board, metal stud bracing as required, and wood veneer wall and soffit panels detailed with continuous 'F' type aluminum reveals. A mechanical duct runs within the ceiling plenum behind the wall panels. Floor finishes are not in contract and coordinate with the owner.
