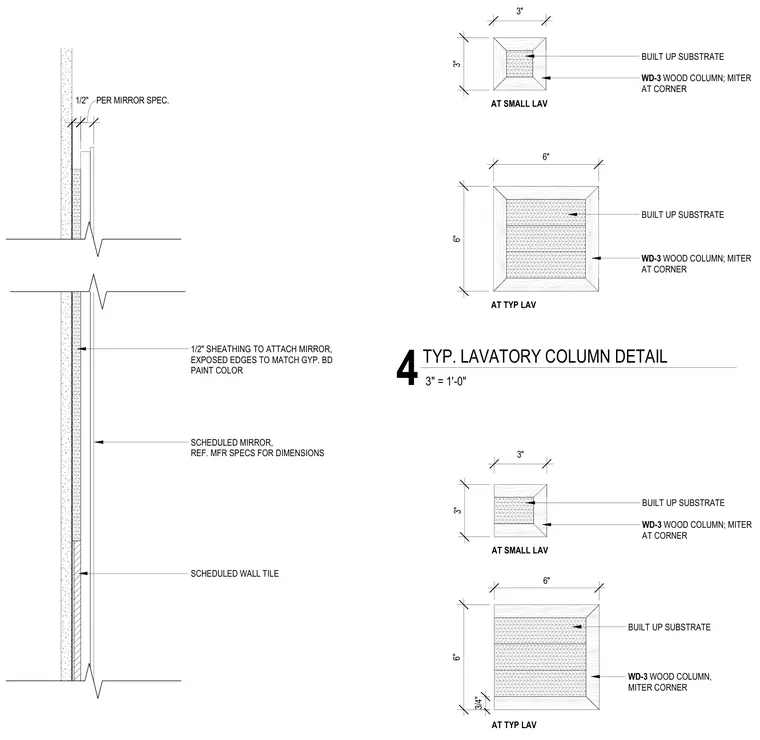

Wood columns at lavatories utilize WD-3 wood columns with mitered corners and built-up substrates. The assembly accommodates scheduled wall tile and a one-half inch scheduled mirror attached to a one-half inch sheathing substrate. Exposed edges are finished with a paint color matching the gypsum board per the mirror specification. Dimensions indicate varying column profiles including three-inch by three-inch configurations at small lavatories and six-inch by six-inch configurations at typical lavatories.
SCHEDULED WALL TILE 1/2" SHEATHING TO ATTACH MIRROR, EXPOSED EDGES TO MATCH GYP. BD PAINT COLOR PER MIRROR SPEC. 1/2" SCHEDULED MIRROR, REF. MFR SPECS FOR DIMENSIONS WD-3 WOOD COLUMN; MITER AT CORNER 6" 6" BUILT UP SUBSTRATE AT TYP LAV WD-3 WOOD COLUMN; MITER AT CORNER 3" BUILT UP SUBSTRATE AT SMALL LAV 3" WD-3 WOOD COLUMN, MITER CORNER 3/4" 6" 6" BUILT UP SUBSTRATE WD-3 WOOD COLUMN; MITER AT CORNER 3" BUILT UP SUBSTRATE AT SMALL LAV AT TYP LAV 3" 3" = 1'-0" 4 TYP. LAVATORY COLUMN DETAIL
