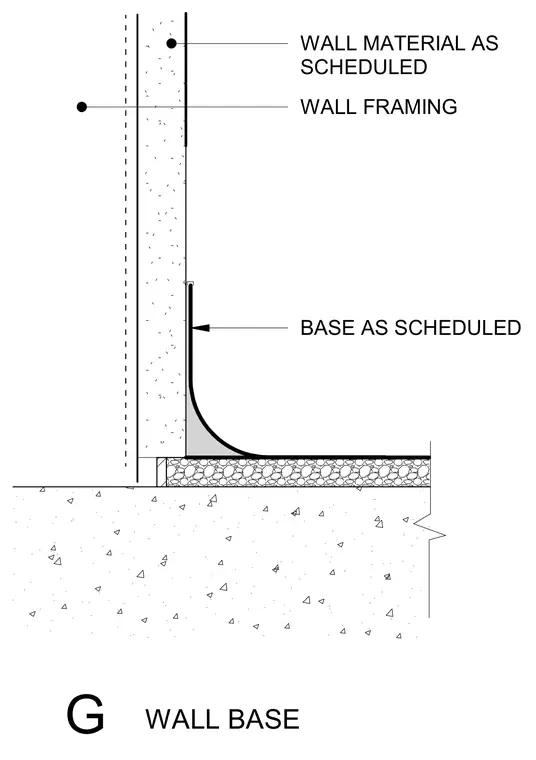

Wall framing supports the wall material as scheduled on the exterior side, while the interior face receives a base as scheduled. The wall base meets the concrete floor assembly with a transition profile.
