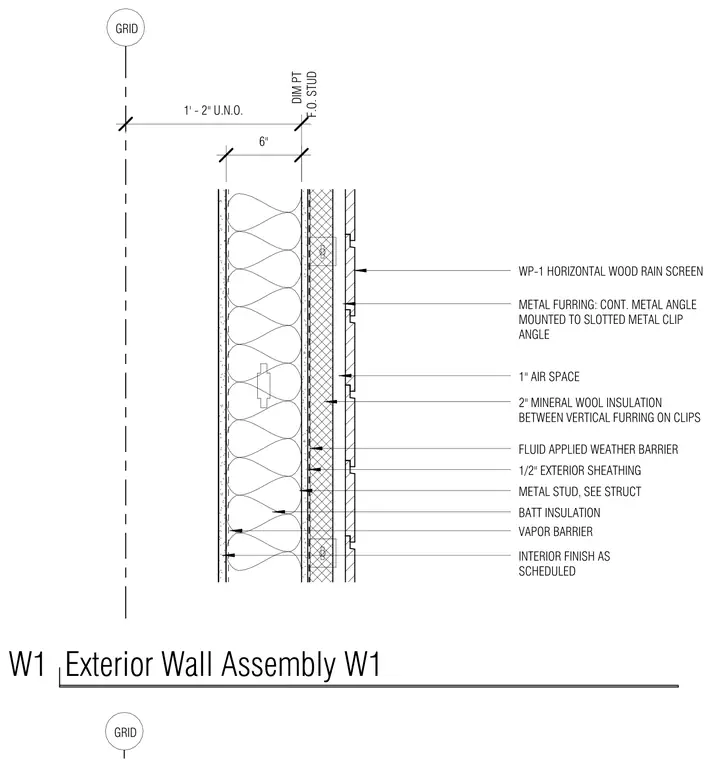

This exterior wall assembly features a horizontal wood rain screen exterior cladding mounted over a one-inch air space and two inches of mineral wool insulation placed between vertical furring on clips. A fluid-applied weather barrier coats the one-half-inch exterior sheathing, which is framed by metal studs with batt insulation and an internal vapor barrier. The interior side is finished per schedule. Continuous metal angles mounted to slotted metal clip angles support the exterior layers, located six inches and one foot two inches from the structural grid line.
W1 Exterior Wall Assembly W1 FLUID APPLIED WEATHER BARRIER 1/2" EXTERIOR SHEATHING DIM PT F.O. STUD WP-1 HORIZONTAL WOOD RAIN SCREEN 2" MINERAL WOOL INSULATION BETWEEN VERTICAL FURRING ON CLIPS GRID METAL FURRING: CONT. METAL ANGLE MOUNTED TO SLOTTED METAL CLIP ANGLE INTERIOR FINISH AS SCHEDULED METAL STUD, SEE STRUCT BATT INSULATION 1' - 2" U.N.O. 6" 1" AIR SPACE VAPOR BARRIER GRID
