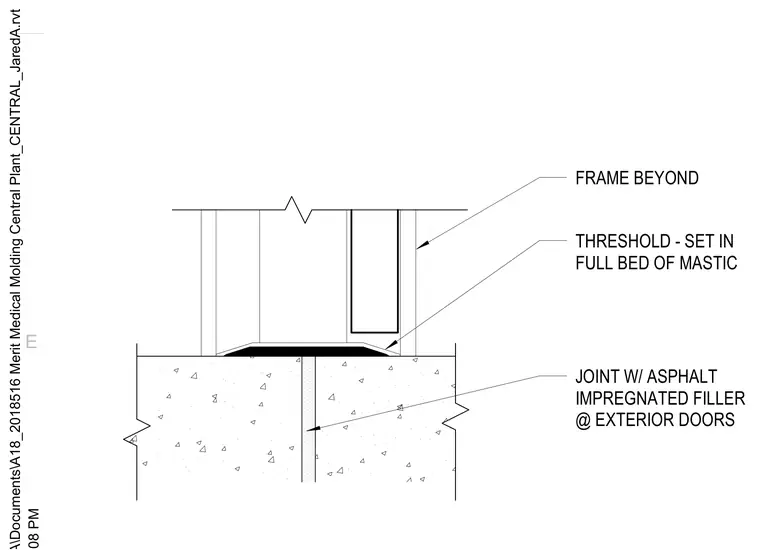

An exterior door threshold is set in a full bed of mastic above a concrete floor slab joint containing an asphalt-impregnated filler. The door frame is visible beyond the threshold assembly.
FRAME BEYOND THRESHOLD - SET IN FULL BED OF MASTIC JOINT W/ ASPHALT IMPREGNATED FILLER @ EXTERIOR DOORS E
