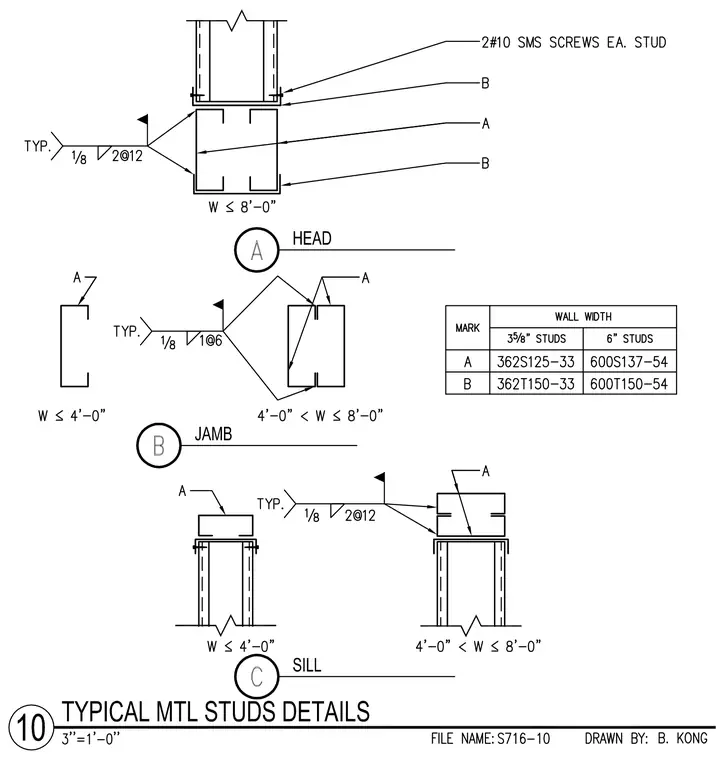

Cold-formed metal stud framing details show head, jamb, and sill conditions for walls up to 8 feet wide with stud profiles specified per the wall width table. Head details feature cold-formed tracks fastened to studs with two number 10 self-tapping sheet metal screws at each stud, incorporating weld callouts of one-eighth inch fillet welds at twelve-inch or six-inch spacings depending on the wall width configuration. Jamb details show single or double stud arrangements welded with one-eighth inch welds. Sill details anchor metal tracks to the supporting substrate using welded connections.
