This administrative reception desk assembly consists of laminate-faced plywood panels secured with floor anchors as required. The structure incorporates plastic laminate finishes and grommets where indicated. A resilient base is provided on all sides at the floor line, and electrical boxes are located where shown. The overall desk height is thirty inches with a work surface depth of two feet four inches.

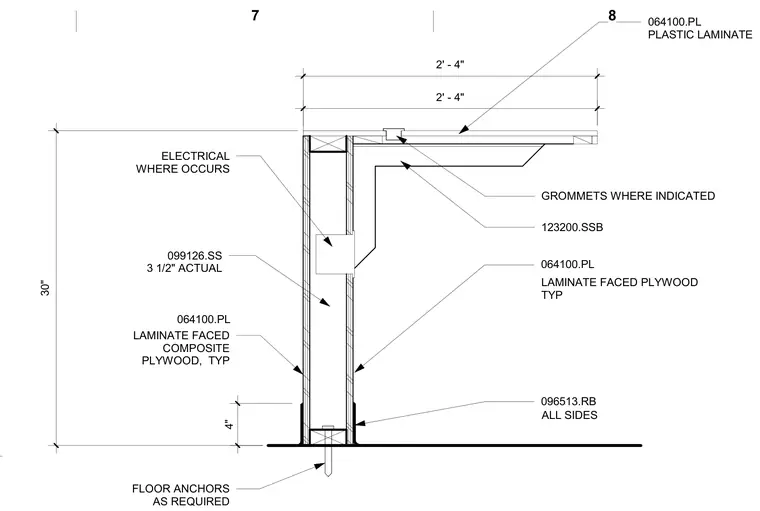

4" ELECTRICAL WHERE OCCURS 099126.SS 3 1/2" ACTUAL FLOOR ANCHORS AS REQUIRED LAMINATE FACED COMPOSITE PLYWOOD, TYP 096513.RB 064100.PL PLASTIC LAMINATE GROMMETS WHERE INDICATED 064100.PL LAMINATE FACED PLYWOOD TYP 064100.PL 123200.SSB 2' - 4" 2' - 4" 30" ALL SIDES 7 8
