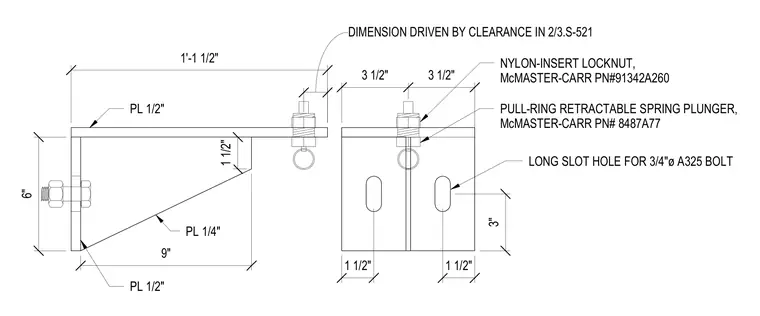

This structural steel retention bracket is fabricated from half-inch thick steel plates welded with quarter-inch stiffener plates and fastened using three-quarter-inch diameter ASTM A325 bolts in long slotted holes. The assembly incorporates a pull-ring retractable spring plunger secured with a nylon-insert locknut, matching McMaster-Carr part numbers 8487A77 and 91342A260. Clearances and dimensions are coordinated with adjacent structural elements.
6" 9" 1 1/2" 1'-1 1/2" PL 1/4" PL 1/2" PL 1/2" 1 1/2" 1 1/2" 3" 3 1/2" 3 1/2" PULL-RING RETRACTABLE SPRING PLUNGER, McMASTER-CARR PN# 8487A77 NYLON-INSERT LOCKNUT, McMASTER-CARR PN#91342A260 DIMENSION DRIVEN BY CLEARANCE IN 2/3.S-521 LONG SLOT HOLE FOR 3/4"ø A325 BOLT
