Architectural · A-RB4PX

Gyp. Bd. Ceiling Access Panel

Materials

Steel Timber / Wood Metal (misc.)Gypsum / Drywall

Elements

About this detail

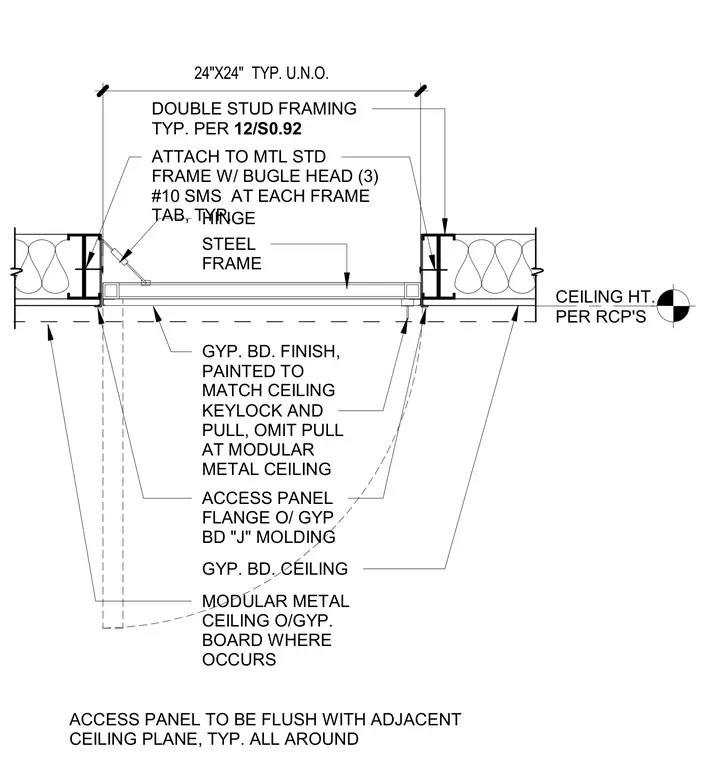

A twenty-four by twenty-four inch modular metal ceiling access panel is set within double stud framing. The access panel flange installs over a gypsum board J molding at the gypsum board ceiling finish. The steel frame attaches to the metal stud framing with three bugle head number ten sheet metal screws at each frame tab. The access panel features a hinge, keylock, and pull, with the pull omitted at modular metal ceilings. The assembly is painted to match the ceiling and remains flush with the adjacent ceiling plane.
