Fabric Wrapped Acoustic Panel Corner Wall Detail

Materials

Elements

About this detail

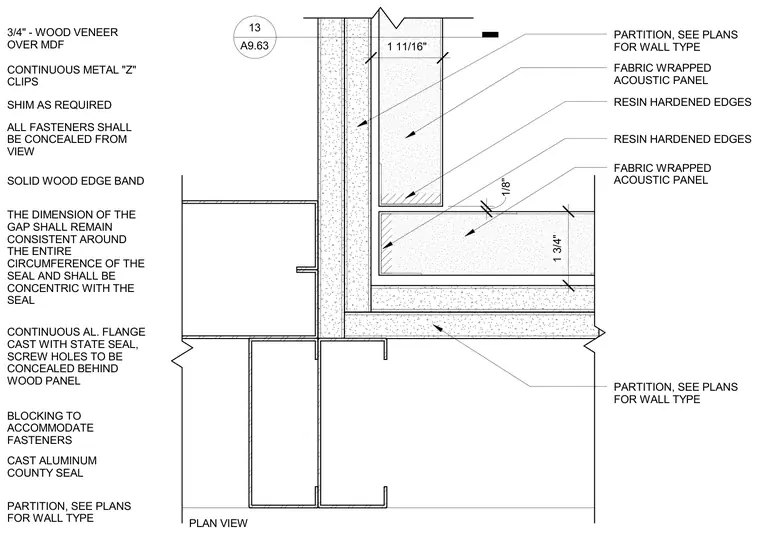

A fabric wrapped acoustic panel corner assembly mounts to a partition wall per structural plans. The finish includes three-quarter inch wood veneer over medium density fiberboard panels with solid wood edge bands and resin hardened edges. Continuous metal z-clips support the panels with shims as required, maintaining a consistent one-eighth inch gap and concealing all fasteners from view. A continuous aluminum flange cast with a state seal and a cast aluminum county seal are integrated at the corner, with screw holes concealed behind the wood panel and blocking provided to accommodate fasteners.
