Typical Upper and Lower Cabinets

Materials

Elements

Walls Doors Ceilings Floors / Slabs Millwork / Casework

About this detail

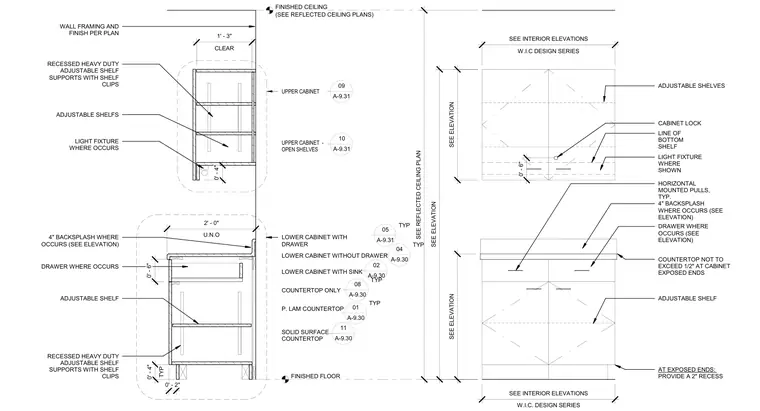

Upper and lower cabinet assemblies are mounted to wall framing and finish per plan. The upper cabinet provides a depth of 1'-3" clear with recessed heavy-duty adjustable shelf supports and shelf clips, adjustable shelves, and an optional light fixture beneath. The lower cabinet features a 2'-0" depth, a 4" backsplash where indicated, drawers and doors as specified, and adjustable shelving or lower cabinet configurations for sinks. Countertops are constructed of plastic laminate or solid surface materials, not to exceed a 1/2" overhang at exposed ends where a 2" recess is provided. Vertical dimensions establish the clearances between the finished floor, countertops, and finished ceiling.
