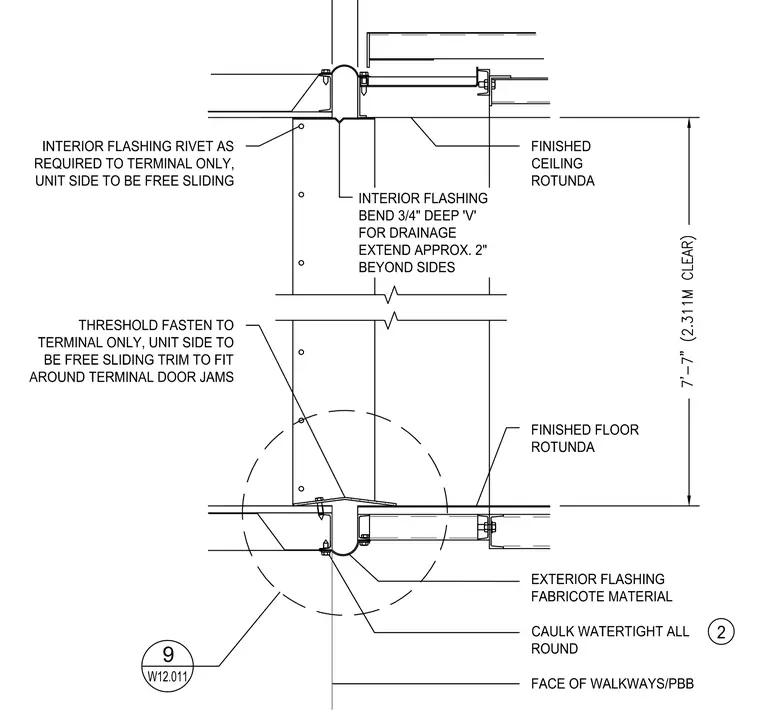

Interior and exterior flashing assembly at the connection between a passenger boarding bridge and a rotunda. The interior flashing features a three-quarter-inch deep 'V' bend for drainage, extending approximately two inches beyond the sides and riveted only to the terminal with the unit side left free sliding. A threshold is fastened to the terminal only, with the unit side designed to be free sliding and trimmed to fit around the terminal door jambs. Exterior flashing utilizes Fabricote material and requires watertight caulking all around the face of the walkways and passenger boarding bridge.
FINISHED CEILING ROTUNDA FINISHED FLOOR ROTUNDA EXTERIOR FLASHING FABRICOTE MATERIAL THRESHOLD FASTEN TO TERMINAL ONLY, UNIT SIDE TO BE FREE SLIDING TRIM TO FIT AROUND TERMINAL DOOR JAMS INTERIOR FLASHING RIVET AS REQUIRED TO TERMINAL ONLY, UNIT SIDE TO BE FREE SLIDING 2 CAULK WATERTIGHT ALL ROUND FACE OF WALKWAYS/PBB INTERIOR FLASHING BEND 3/4" DEEP 'V' FOR DRAINAGE EXTEND APPROX. 2" BEYOND SIDES 9 W12.011
