The peninsula soiled dishtable features a 14 gauge stainless steel top with a 1/16-inch-per-foot slope towards the dish machine on the dish dropoff side. The underside is supported by one-inch by four-inch 14 gauge channel reinforcing and stainless steel gussets. The support structure consists of 1-5/8-inch outside diameter 16 gauge stainless steel legs and crossrails, terminating in adjustable bullet feet. An optional 16 gauge stainless steel undershelf or open base is integrated as specified. Fabrication complies with NSF standards.

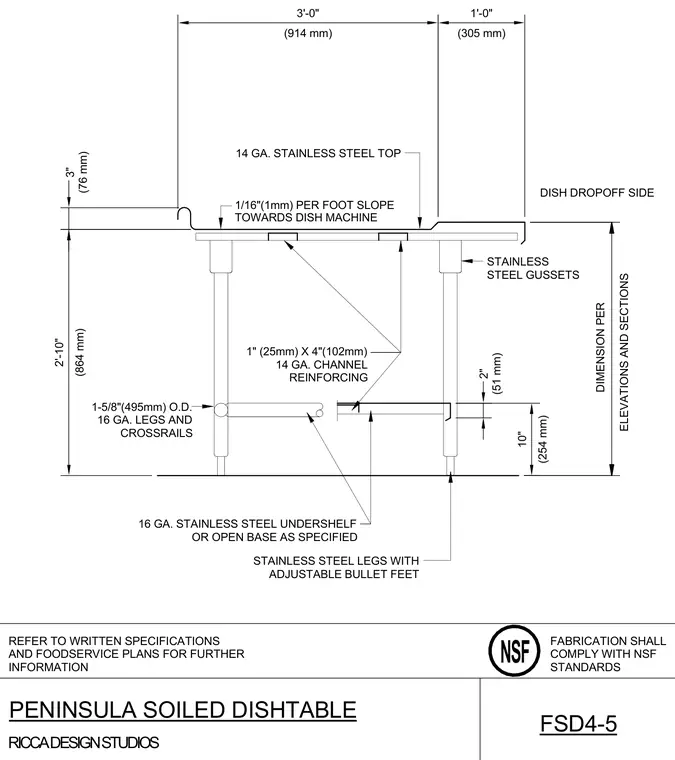

REFER TO WRITTEN SPECIFICATIONS AND FOODSERVICE PLANS FOR FURTHER INFORMATION RICCA DESIGN STUDIOS FABRICATION SHALL COMPLY WITH NSF STANDARDS NSF PENINSULA SOILED DISHTABLE FSD4-5 ELEVATIONS AND SECTIONS DIMENSION PER 3'-0" (914 mm) 1'-0" (305 mm) 3" (76 mm) 2'-10" (864 mm) 2" (51 mm) 10" (254 mm) 1" (25mm) X 4"(102mm) 14 GA. CHANNEL REINFORCING 16 GA. STAINLESS STEEL UNDERSHELF OR OPEN BASE AS SPECIFIED 1-5/8"(495mm) O.D. 16 GA. LEGS AND CROSSRAILS STAINLESS STEEL GUSSETS 14 GA. STAINLESS STEEL TOP 1/16"(1mm) PER FOOT SLOPE TOWARDS DISH MACHINE DISH DROPOFF SIDE STAINLESS STEEL LEGS WITH ADJUSTABLE BULLET FEET
