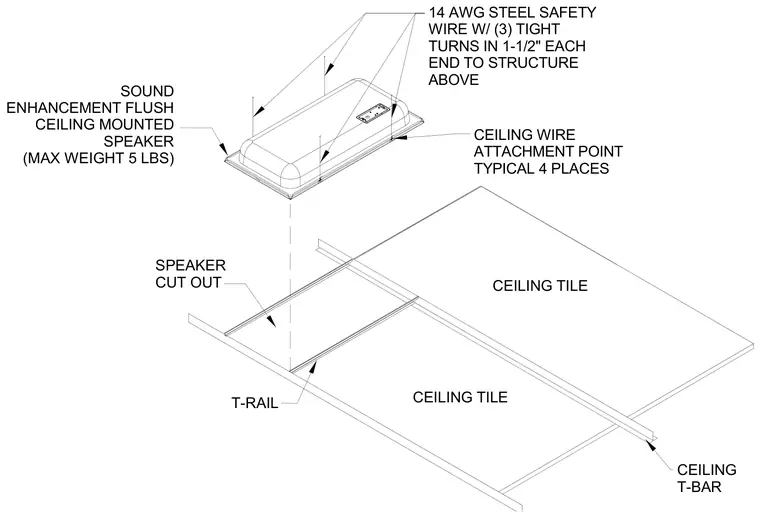

A flush ceiling-mounted sound enhancement speaker drops into an acoustical tile ceiling cut out, supported by a standard T-bar and T-rail suspension grid. The speaker housing has a maximum weight of 5 lbs and features wire attachment points at four typical locations. Each attachment point connects to a 14 AWG steel safety wire secured with three tight turns in 1-1/2 inches, anchored to the overhead structure above.
CEILING TILE CEILING TILE CEILING T-BAR T-RAIL SPEAKER CUT OUT SOUND ENHANCEMENT FLUSH CEILING MOUNTED SPEAKER (MAX WEIGHT 5 LBS) 14 AWG STEEL SAFETY WIRE W/ (3) TIGHT TURNS IN 1-1/2" EACH END TO STRUCTURE ABOVE CEILING WIRE ATTACHMENT POINT TYPICAL 4 PLACES
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
