Full Height Non Rated Furring Wall Detail

Materials

Concrete Steel Timber / Wood Stone Metal (misc.)Gypsum / Drywall

Elements

Walls Ceilings Floors / Slabs Bracing Anchors / Embeds Connections / Plates

Connections

Shear Stud / Composite Deck Attachment Embed Plate

About this detail

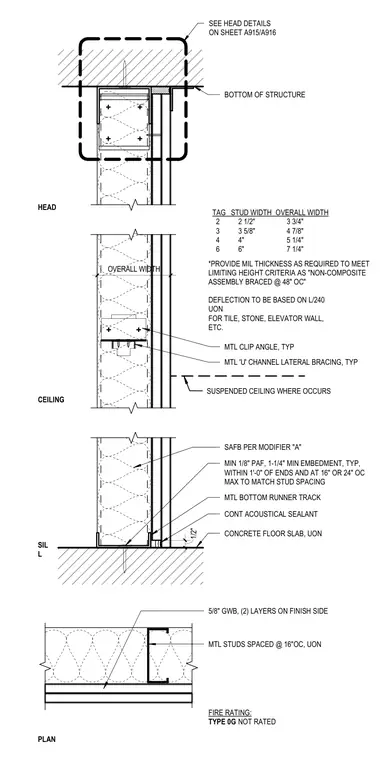

This non-rated full-height furring wall assembly connects to the concrete floor slab at the sill using a metal bottom runner track secured with minimum 1/8 inch powder-actuated fasteners having a 1-1/4 inch minimum embedment typical, placed within 1 foot of ends and spaced at 16 or 24 inches on center maximum to match stud spacing. Continuous acoustical sealant is applied beneath the runner track at the concrete floor slab. The metal studs are spaced at 16 inches on center typical with specified gauge and mil thickness to meet limiting height criteria as a non-composite assembly braced at 48 inches on center. A 1/2 inch metal 'U' channel provides lateral bracing with metal clip angles typical. Two layers of 5/8 inch gypsum wallboard are installed on the finish side. Sound attenuation fire blanket is installed within the stud cavity per modifier 'A'.
