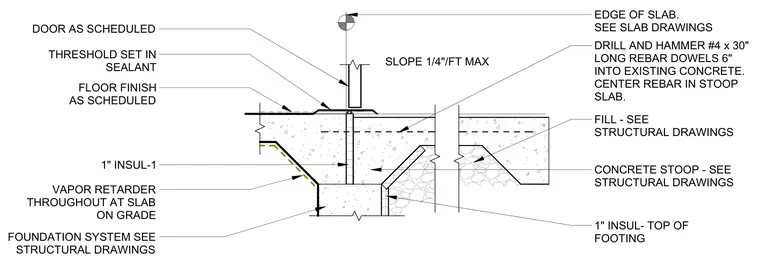

A reinforced concrete stoop bears on a foundation system detailed on the structural drawings with a maximum slope of one-quarter inch per foot. The exterior door threshold sits directly on sealant above the concrete slab edge. Number four rebar dowels, thirty inches long, are drilled and hammered six inches into the existing concrete and centered within the stoop slab. A vapor retarder is installed throughout beneath the slab on grade, alongside one-inch insulation panels placed at the foundation and top of the footing over structural fill.
THRESHOLD SET IN SEALANT 1" INSUL-1 FOUNDATION SYSTEM SEE STRUCTURAL DRAWINGS CONCRETE STOOP - SEE STRUCTURAL DRAWINGS SLOPE 1/4"/FT MAX FILL - SEE STRUCTURAL DRAWINGS DOOR AS SCHEDULED 1" INSUL- TOP OF FOOTING FLOOR FINISH AS SCHEDULED VAPOR RETARDER THROUGHOUT AT SLAB ON GRADE DRILL AND HAMMER #4 x 30" LONG REBAR DOWELS 6" INTO EXISTING CONCRETE. CENTER REBAR IN STOOP SLAB. EDGE OF SLAB. SEE SLAB DRAWINGS
