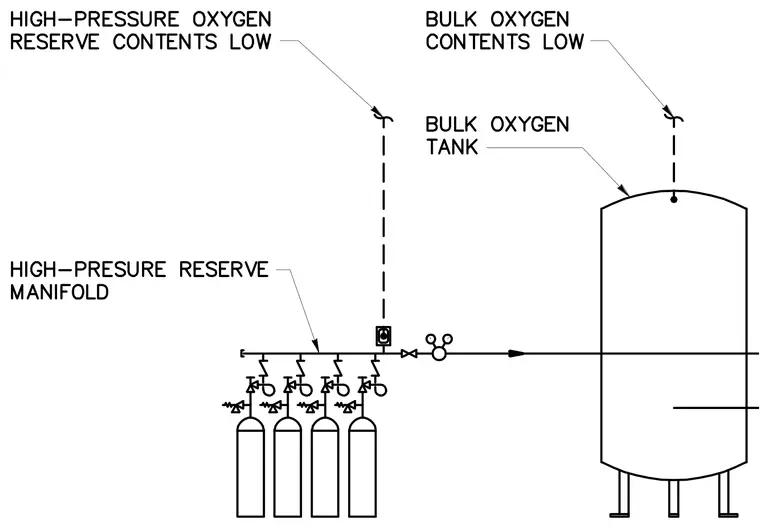

Medical gas distribution schematic detailing the connection between a bulk oxygen tank and a high pressure reserve manifold with four connected reserve cylinders. Alarm signal lines indicate low contents conditions for both the bulk oxygen tank and the high-pressure oxygen reserve. Pressure regulators, control valves, and distribution piping link the storage sources to the facility supply line.
