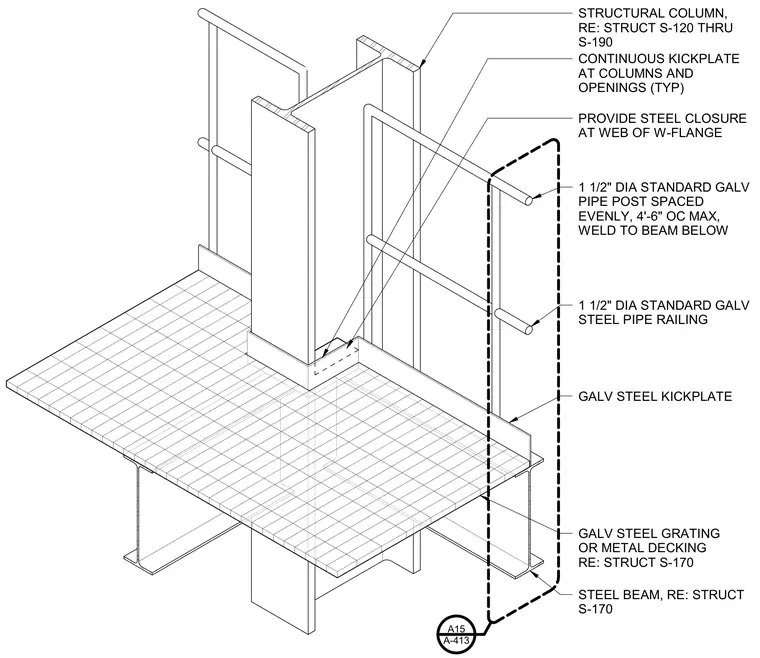

A mechanical platform assembly is supported by structural steel framing and wide-flange beams. Galvanized steel grating or metal decking spans between the beams, finished with a continuous galvanized steel kickplate at columns and platform openings. Standard galvanized steel pipe posts support the pipe railing and are spaced at a maximum of four feet six inches on center, welded directly to the supporting beam below. A steel closure plate is provided at the web of the wide-flange structural column.
GALV STEEL KICKPLATE GALV STEEL GRATING OR METAL DECKING RE: STRUCT S-170 STEEL BEAM, RE: STRUCT S-170 1 1/2" DIA STANDARD GALV PIPE POST SPACED EVENLY, 4'-6" OC MAX, WELD TO BEAM BELOW 1 1/2" DIA STANDARD GALV STEEL PIPE RAILING CONTINUOUS KICKPLATE AT COLUMNS AND OPENINGS (TYP) A-413 A15 STRUCTURAL COLUMN, RE: STRUCT S-120 THRU S-190 PROVIDE STEEL CLOSURE AT WEB OF W-FLANGE
