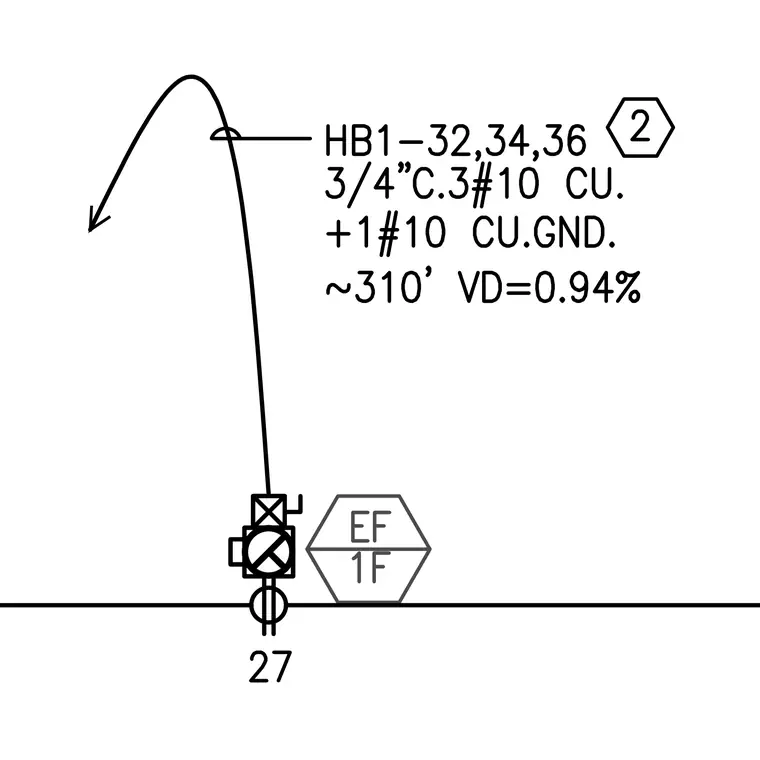

An electrical home run connects circuit HB1-32,34,36 with three number 10 copper conductors inside three-quarter inch conduit and one number 10 copper ground. The run length is approximately 310 feet with a voltage drop of 0.94 percent. A junction or device box is shown connected at circuit point 27.
