This interior partition assembly consists of 2-1/2 inch metal stud framing spaced according to structural drawings. Sound attenuation batt insulation fills the cavity between studs. Each side of the partition is finished with 5/8 inch gypsum wall board and a specified wall finish per the finish schedule.

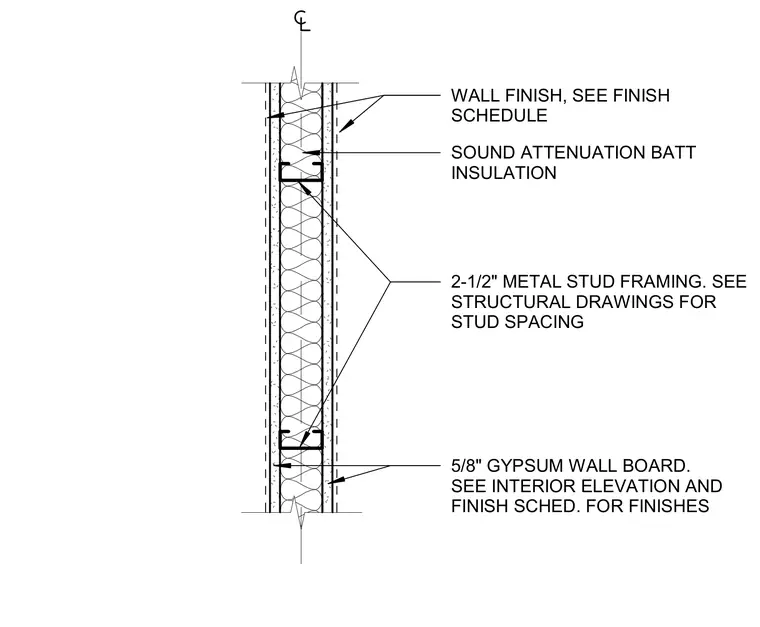

2-1/2" METAL STUD FRAMING. SEE STRUCTURAL DRAWINGS FOR STUD SPACING SOUND ATTENUATION BATT INSULATION 5/8" GYPSUM WALL BOARD. SEE INTERIOR ELEVATION AND FINISH SCHED. FOR FINISHES WALL FINISH, SEE FINISH SCHEDULE
